Modular Extrusion Design
Slotted aluminum back canes and seat pans enable infinite height, width, and depth adjustments without compromising frame strength or lost seat depth.
Tailored Power Positioning
Next-Generation Clinical Mobility Engineering
The Alltrack Signature Series represents the pinnacle of complex rehab technology (CRT). Re-engineered from the ground up, Signature merges a sleek modern aesthetic with unparalleled structural modularity. Built to accommodate pediatric, adult, and bariatric users with weight capacities up to 550 lbs (250 kg), this platform empowers healthcare procurement managers and clinical specialists worldwide with tailored mobility solutions.
Up to 165° Power Recline
High-efficiency, whisper-quiet actuators deliver smooth recline transitions, reducing shear forces while prioritizing patient comfort and postural stability.
North American Craftsmanship
Engineered and assembled in North America, ensuring rigorous quality control, ISO-compliant manufacturing standards, and reliable long-term supply chain integrity.
Engineering Superiority
Key Modular Features & System Specifications

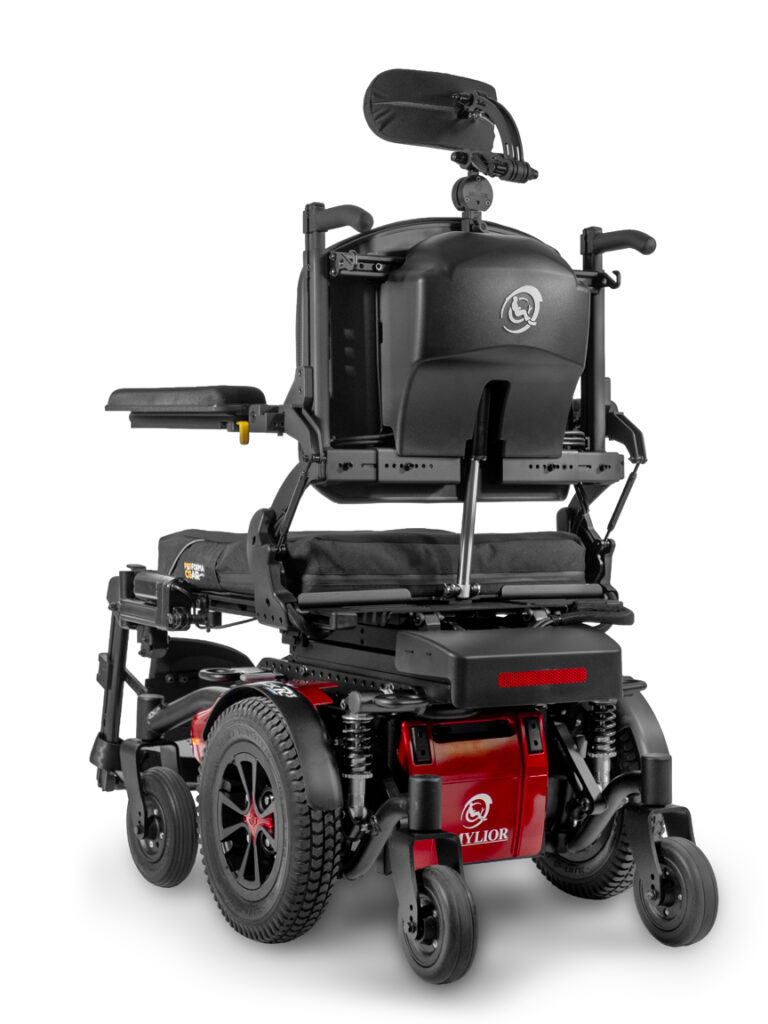

Power Reclining & Backrest Flexibility
The Signature system integrates seamlessly with both standard and custom aftermarket seating. Inner and outer extrusions provide versatile mounting locations for specialized backrests while eliminating depth loss.
- Power recline movement reaching up to 165° with shear reduction.
- Minimum seat-to-floor height starting as low as 15.5 inches (395 mm).
- Endomorph back cane adjustment allows narrower back width by up to 2 inches (50 mm).
- Pre-threaded interface backplate compatible with popular market backrests.
- Compact rear shroud design with clean cable and wire routing protection.
Multi-Adjustable Cantilever Armrests
Designed for optimal upper-extremity support, Signature cantilever armrests provide independent pitch adjustments relative to set backrest angles, maintaining ergonomic alignment throughout recline phases.
- 5° outward rotation and up to 25° inward rotation in precise 5° increments.
- Armpad length sliding range up to 1 inch forward for customized fore/aft fit.
- Extended armrest length choices: 10", 14", 16", and all-new 18" (455 mm) options.
- Available in high-durability gel or molded contoured foam pads (3.5" width).

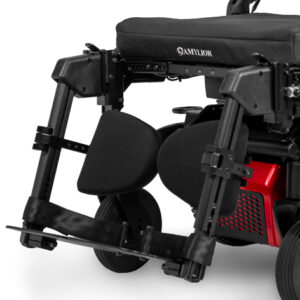

Lightweight Front Rigging & Slotted Seat Pan
Utilizing proprietary high-strength aluminum extrusions, the Signature front rigging achieves up to 25% weight reduction over legacy designs while increasing structural resistance against rotation.
- Infinite sliding calf pad adjustments across a 4.25-inch (108 mm) range.
- Pediatric high-mount and adult HD footplate configurations.
- Slotted seat pan with laser-engraved sizing matrix for rapid clinical setup.
- Overlapping seat adjustability kits accommodating user growth and progression.
Technical Parameters
Alltrack Signature Series Specifications
| Specification Parameter | Standard Model | Heavy Duty (HD) | Very Heavy Duty (VHD) |
|---|---|---|---|
| Max Weight Capacity | 300 lbs (136 kg) | 450 lbs (205 kg) | 550 lbs (250 kg) |
| Base Width Options | Compact (23.25") / Standard (24.25") | Standard (25.5") | Bariatric (27.25") |
| Seat-to-Floor Height | From 15.5" (395 mm) | From 15.5" (395 mm) | From 17" (430 mm) |
| Power Recline Range | Up to 165° | Up to 165° | Up to 165° |
| Armrest Rotation | 5° Outward / 25° Inward | 5° Outward / 25° Inward | 5° Outward / 25° Inward |
| Electronics Compatibility | VR2, R-net, Special Controls | VR2, R-net, Special Controls | R-net Expandable System |
| Manufacturing Origin | ISO Certified - North America | ISO Certified - North America | ISO Certified - North America |
Global Supply Chain
Why Global Procurement Teams Choose Amylior
Amylior is a trusted manufacturer delivering high-spec complex mobility equipment to international healthcare distributors, medical equipment importers, and clinical rehabilitation centers. By unifying power mobility, power positioning, and therapeutic seating under one ISO-certified manufacturer, we guarantee rapid production turnaround, simplified parts logistics, and dedicated technical training support.
Request B2B Quotation & Distribution Details
Contact our medical equipment procurement specialists for product brochures, dealer pricing, custom positioning options, or bulk order logistics.
