Patented Dual-Action Suspension
Fully independent 6-wheel interactive suspension combined with vertical shock absorption provides unmatched comfort, traction, and obstacle climbing across diverse terrains.
Complex Rehab Technology (CRT)
Alltrack Power Wheelchairs Series
Precision-engineered medical mobility solutions built with patented interactive suspension, modular positioning chassis, and heavy-duty 4-pole motor configurations.
Clinical & Engineering Excellence
Built for Performance. Designed for Life.
Amylior’s flagship Alltrack Power Wheelchair Series represents the pinnacle of complex rehabilitation engineering. Designed to meet the demanding requirements of global healthcare providers, clinical prescribers, and medical equipment importers, every Alltrack power wheelchair combines advanced postural alignment, pressure redistribution technology, and superior outdoor maneuverability. Implemented with ISO 13485 manufacturing precision and international medical safety certifications, the Alltrack family delivers uncompromising reliability for pediatric, standard, and bariatric users worldwide.
Modular Chassis Architecture
Fully modular frame design simplifies clinical seating adjustments, width/depth modifications, and field upgrades for tailored patient positioning growth.
High-Torque 4-Pole Motors
Equipped with high-efficiency 4-pole German-engineered motors that deliver smooth acceleration, responsive indoor handling, and robust outdoor power reserve.
Signature Power Seating
Available with full power seating modules including 50° Center of Gravity tilt, 165° power recline with shear reduction, and ALTA 11” (280 mm) Power Seat Elevation.
Advanced Electronics & Controls
Seamless integration with non-expandable (VR2) and expandable (R-net) electronics, compatible with alternative drive controls, chin switches, and head arrays.
Full Patient Spectrum Coverage
Comprehensive model selection spanning pediatric (P3), standard mid-wheel drive (M3), narrow base configurations, hybrid traction (R3), and heavy-duty bariatric (HD3).
Comprehensive Product Range
Alltrack Power Wheelchair Series Models
Select from our clinical line of mid-wheel drive, hybrid rear-wheel drive, narrow-base, pediatric, and heavy-duty power mobility configurations.
Mid-Wheel Drive

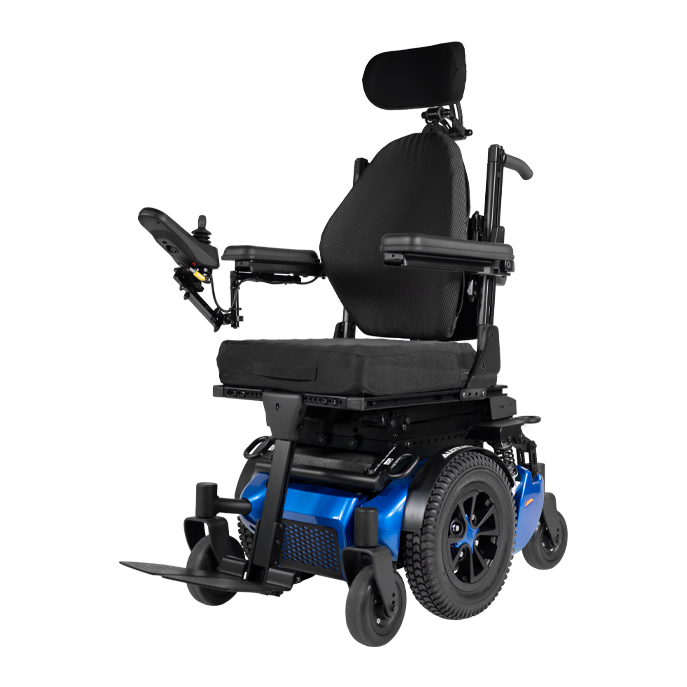

Alltrack M3 Signature
The gold standard in complex mid-wheel drive mobility. Features 6-wheel interactive suspension, tight turning radius, and full power positioning options.
- Drive Type: Mid-Wheel Drive (MWD)
- Weight Capacity: 300 lbs (136 kg)
- Suspension: Dual-Action Interactive
- Base Width: 23.4" (595 mm)
Heavy-Duty MWD

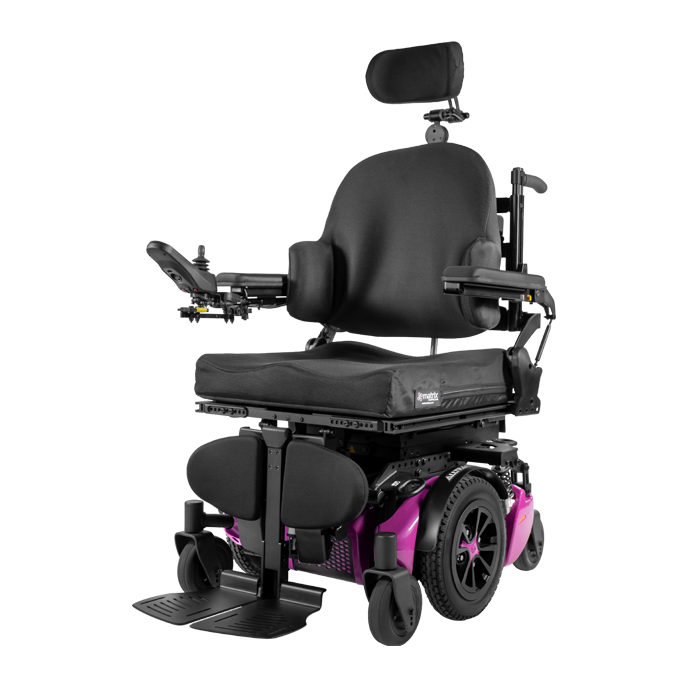

Alltrack M3HD Signature
Reinforced mid-wheel drive chassis designed for higher load requirements without compromising maneuverability or seating adjustments.
- Drive Type: Heavy-Duty MWD
- Weight Capacity: 450 lbs (204 kg)
- Suspension: HD Dual-Action Suspension
- Base Width: 25.4" (645 mm)
Compact / Narrow Base
Alltrack M3 Narrow (N2221 / N2424)
Ultra-compact footprint designed for tight indoor environments, narrow doorways, and restricted accessibility pathways while maintaining full suspension.
- Drive Type: Compact Mid-Wheel Drive
- Weight Capacity: 300 lbs (136 kg)
- Special Feature: Ultra-Narrow Footprint
- Base Width: 21.5" - 23.5"
Hybrid / Rear-Wheel Drive

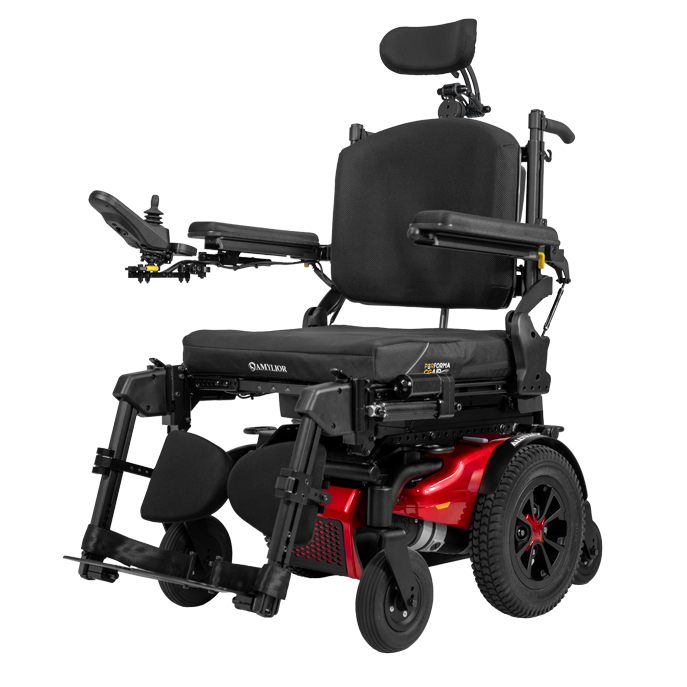

Alltrack R3 Signature
Combines rear-wheel drive speed and outdoor tracking performance with smooth suspension for active users traversing rough outdoor terrain.
- Drive Type: Hybrid Rear Traction (RWD)
- Weight Capacity: 300 lbs (136 kg)
- Max Speed: Up to 6.5 mph (10.5 km/h)
- Suspension: Rear Interactive Shock System
Outdoor & All-Terrain

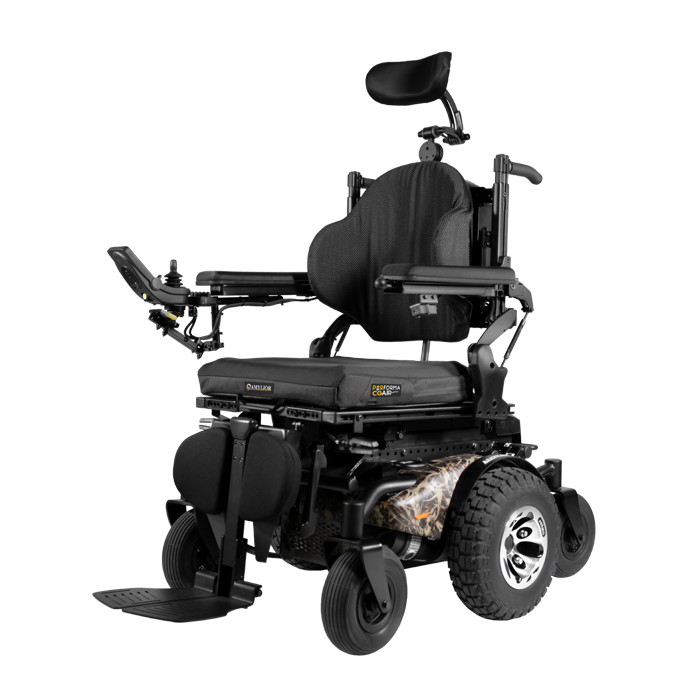

Alltrack R3 All-Terrain
Engineered with knobby wide pneumatic tires, heavy-duty motor gearboxes, and enhanced ground clearance for rugged outdoor exploration.
- Drive Type: All-Terrain RWD Package
- Tires: Aggressive Pneumatic Tread
- Motor Specs: High-Torque 4-Pole
- Terrain Rating: Outdoor & Unpaved Paths
Bariatric VHD

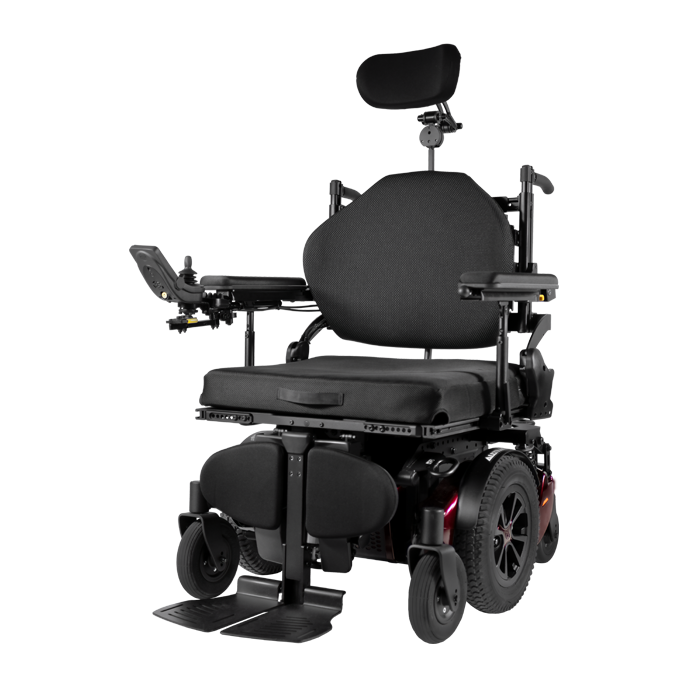

Alltrack HD3 Signature
The ultimate heavy-duty power positioning platform. Engineered for bariatric users with extreme weight capacity, wide seating, and maximum structural frame rigidity.
- Drive Type: Bariatric Mid-Wheel Drive
- Weight Capacity: 550 lbs (250 kg)
- Seating Width: Up to 28" (710 mm)
- Structure: Reinforced Dual Steel Frame
Pediatric Mobility

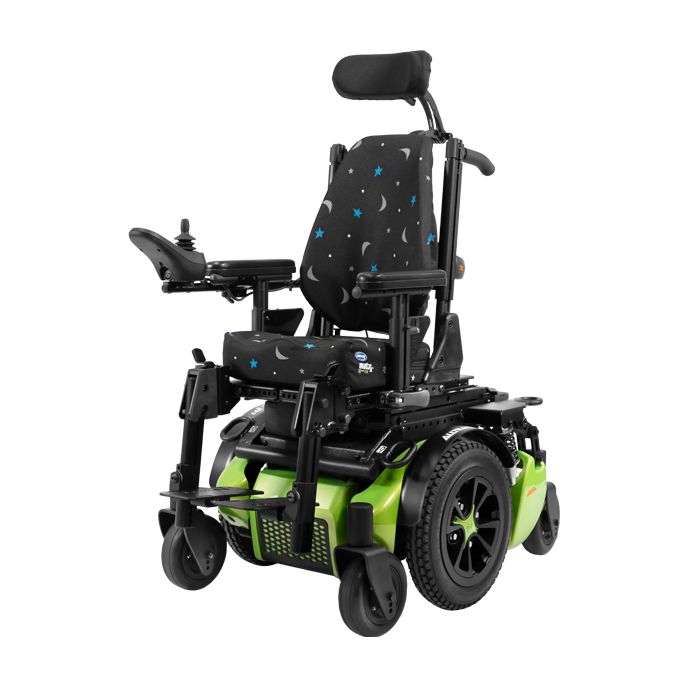

Alltrack P3 MWD Signature
Specially scaled mid-wheel drive power wheelchair engineered for children. Offers growth capability, pediatric power seating, and colorful frame options.
- Target Group: Pediatric / Young Adult
- Weight Capacity: 250 lbs (113 kg)
- Growth Adjustability: Built-in Frame Expansion
- Seat Width: 11" to 16" (280 - 410 mm)
Pediatric Hybrid

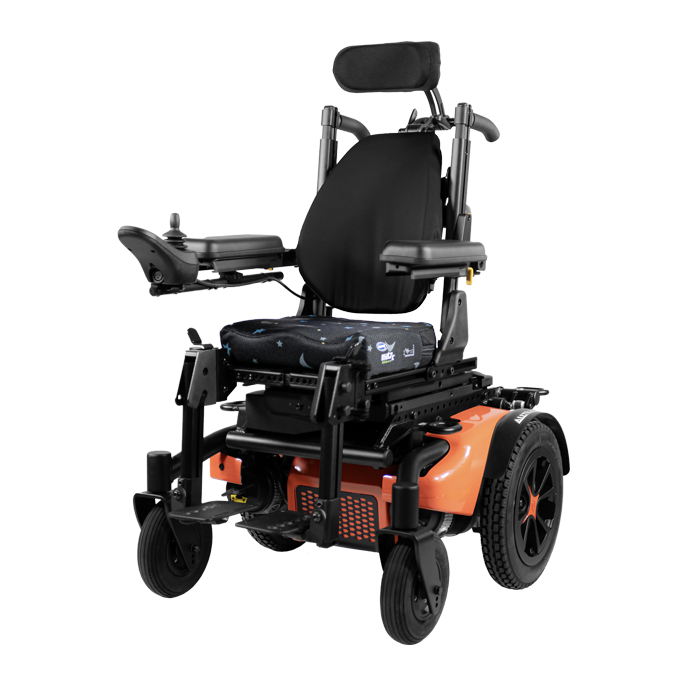

Alltrack P3 HWD Signature
Pediatric hybrid-wheel drive platform offering smooth outdoor tracking, low seat-to-floor height, and compatibility with custom postural supports.
- Target Group: Pediatric Outdoor Active
- Drive Type: Hybrid Drive (HWD)
- Seat-to-Floor Height: Ultra-Low 15.5" (395 mm)
- Electronics: R-net Specialist Interface
Engineering Specifications
Technical Comparison Matrix
Detailed specification breakdown for medical procurement specialists, clinicians, and international distributors.
| Model Name | Drive Configuration | Weight Capacity | Base Width | Max Speed | Power Seating Module | Battery Options |
|---|---|---|---|---|---|---|
| Alltrack M3 Signature | Mid-Wheel Drive (MWD) | 300 lbs / 136 kg | 23.4" / 595 mm | 6.5 mph / 10 km/h | 50° Tilt, 165° Recline, 11" Elevate | Group 22NF / Group 24 |
| Alltrack M3HD | Heavy-Duty MWD | 450 lbs / 204 kg | 25.4" / 645 mm | 5.0 mph / 8 km/h | 50° Tilt, 165° Recline, 11" Elevate | Group 24 / Group 27 |
| Alltrack M3 Narrow | Compact MWD | 300 lbs / 136 kg | 21.5" / 545 mm | 6.0 mph / 9.6 km/h | 50° Tilt, 165° Recline | Group 22NF |
| Alltrack R3 Signature | Hybrid / Rear-Wheel Drive | 300 lbs / 136 kg | 25.0" / 635 mm | 6.5 mph / 10 km/h | 50° Tilt, 165° Recline, 11" Elevate | Group 24 / Group 27 |
| Alltrack HD3 Bariatric | Extra Heavy-Duty MWD | 550 lbs / 250 kg | 27.5" / 700 mm | 4.5 mph / 7.2 km/h | Heavy-Duty Power Tilt & Recline | Group 27 / Group 31 |
| Alltrack P3 Pediatric | Pediatric MWD / HWD | 250 lbs / 113 kg | 21.2" / 540 mm | 6.0 mph / 9.6 km/h | Pediatric Power Tilt & Recline | Group 22NF |
Global Manufacturing Partner
ISO 13485 Certified Medical Device Manufacturing
Amylior is a premier medical device manufacturer specializing in complex rehab technology (CRT). Every Alltrack power wheelchair is designed and assembled in North America under strict quality assurance frameworks, adhering to FDA, CE, MDR, and international healthcare compliance standards.
- Complete OEM / ODM configuration support for bulk distributors
- Direct factory technical support and clinical staff training
- Comprehensive global spare parts supply chain & warranty management
- Multi-language clinical literature, order forms, and technical manuals
Clinical Seating & Posture
Advanced Seating & Positioning Integration
Our dedicated engineering team collaborates directly with occupational therapists, physiatrists, and rehab technology professionals (RTPs). Alltrack power bases integrate seamlessly with custom seating hardware, lateral postural contours, and therapeutic air pressure management cushions.
- Endomorph back canes for ergonomic anatomical fit
- Power center-mount foot platforms & elevating leg rests
- Specialty drive interfaces: head arrays, chin controls, proportional joysticks
- Clinical trial & evaluation units available for accredited distributors
